Motorized valve with electrothermal actuatorVB, SVB
The motorized valve serie VB are used in heating and air-conditioning systems for the flow control of heated or chilled water and are motorized by the electrothermal actuator serie SVB. The small sizes allow easy installation in fan coils and terminal unit coils. The actuator-valve assembly is easily made thanks to its threaded ring nut, which allows a comfortable cable positioning.
Valves Actuators 120NAVC
The AVC series provides floating or proportional control in HVAC applications. The compact design of this actuator makes it suitable for installation in confined spaces, such as fan coil, chilled ceiling, manifolds, etc. The AVC series actuator is designed for field mounting onto VB terminal unit valves. Due to the innovative concept of different strokes setting the AVC can be installed over most of the terminal unit valve in the market.
Actuator for ball valveAVS
The AVS series provides on-off and proportional control in HVAC applications. The compact design of this actuator makes it suitable for installation in confined spaces, such as fan coil, chilled ceiling, manifolds, etc.
The AVS series actuator is designed for field mounting onto VS terminal unit valves.
Due to the innovative concept the AVS can be installed over most of the terminal unit valve in the market.
Motorized zone valveVZ, SVZ
The valve serie VZ coupled to the actuator serie SVZ is suitable for applications in heating, cooling and air conditioning systems of domestic and commercial areas and is typically used on fan coil and air handling units. The actuator can be mounted after valve body has been installed onto the system.
Ball valvesVS
The ball valves VS serie are control valves with perfect sealing, that thanks to the shaping of the adjustment disk guarantees a percentage flow characteristic.
Actuators for ball valvesS5V
Electric actuators series S5V for ball valves for using in heating, refrigeration and air conditioning systems. For ball valves VS series from DN15 to DN50.
Power supply 24 V AC/DC and 230 V AC.
Function: open / closed or 3 point and proportional action.
Actuators for ball valvesS10V
Electric actuators series S10V for ball valves for using in heating, refrigeration and air conditioning systems. For ball valves VS series from DN15 to DN50.
Power supply 24 V AC/DC and 230 V AC.
Function: open / closed or 3 point and proportional action.

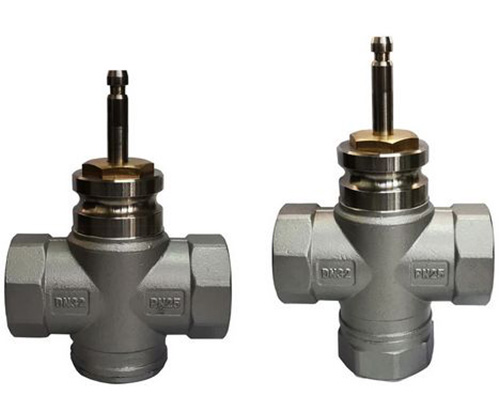

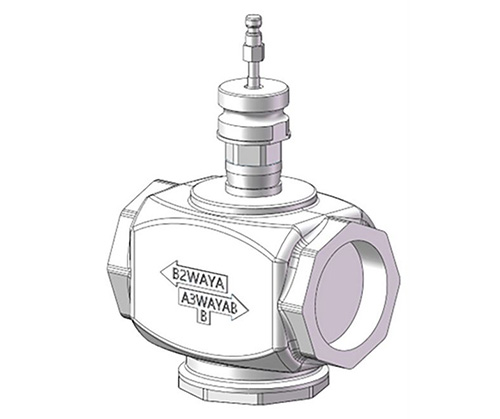

Screwed globe valvesVG
The globe valves in brass serie VG are used in heating, refrigeration and air-conditioning systems for the flow control of heated or chilled water for domestic and industrial applications.
The valves are motorized by the electric actuators serie AVG at 600 and 1000 N.
Actuators for screwed globe valves 600 NAVG6
The actuator series AVG6 has been designed to control the screwed globe valves series VG up to DN40. The actuator is equipped by a bidirectional synchronous motor at 600 N and available in ON-OFF, floating and proportional version. Fast and easy assembly. The actuator is equipped, for the proportional version, with a button for self-adjustment. The on-off switch is fitted with magnetic clutch.

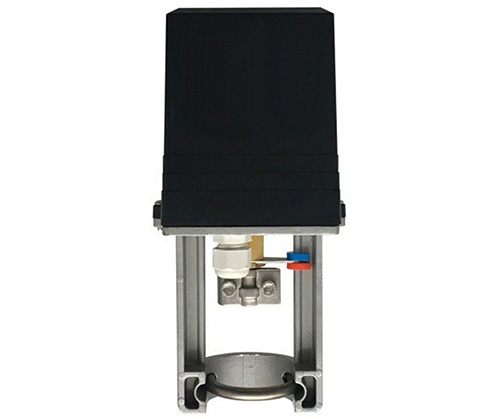

Actuators for screwed globe valves 1000 NAVG10
The actuator series AVG10 has been designed to control the screwed globe valves series VG from DN50 up to DN80. The actuator is equipped by a bidirectional synchronous motor at 1000 N and available in ON-OFF, floating and proportional version. Fast and easy assembly. The actuator is fitted with manual override for the drive in case of power failure.
Flanged globe valvesVF
The globe valves in cast-iron serie VF are used in heating, refrigeration and air-conditioning systems for the flow control of heated or chilled water for domestic and industrial applications. The valves are motorized by the electric actuators serie AVF at 1200 N up to DN80 and 1800 N from DN100 up to DN200.
Actuator for flanged globe valve, 1200 and 1800 NAVF
The actuator series AVF has been designed to control the flanged globe valves serie VF. The actuator is equipped by a double bidirectional synchronous motor at 1200 and 1800 N and available in ON-OFF, floating and proportional version.The actuator series AVF has been designed to control the flanged globe valves serie VF. The actuator is equipped by a double bidirectional synchronous motor at 1200 and 1800 N and available in ON-OFF, floating and proportional version.Fast and easy assembly. The actuator is fitted with manual override for the drive in case of power failure.
Actuators for flanged globe valves DN125, 3000 NAVF30
The actuator series AVF30 has been designed to control the flanged globe valves serie VF, size DN125. The actuator is equipped by a double bidirectional synchronous motor at 3000 N and available in ON-OFF, floating and proportional version.The actuator series AVF30 has been designed to control the flanged globe valves serie VF, size DN125. The actuator is equipped by a double bidirectional synchronous motor at 3000 N and available in ON-OFF, floating and proportional version.Fast and easy assembly. The actuator is fitted with manual override for the drive in case of power failure.
Actuator for flanged globe valve DN 150/200, 7000 NAVF70
The actuator series AVF70 has been designed to control the flanged globe valves serie VF, size DN150 and DN200. The actuator is equipped by a double bidirectional synchronous motor at 7000 N and available in ON-OFF, floating and proportional version.The actuator series AVF70 has been designed to control the flanged globe valves serie VF, size DN150 and DN200. The actuator is equipped by a double bidirectional synchronous motor at 7000 N and available in ON-OFF, floating and proportional version.Fast and easy assembly. The actuator is fitted with manual override for the drive in case of power failure.
Flanged globe valveVFF
The VFF series cast iron valves are used to control the flow of hot or cold water in heating, air conditioning or refrigeration systems in civil and industrial plants. They are motorised with AVFF series actuators.

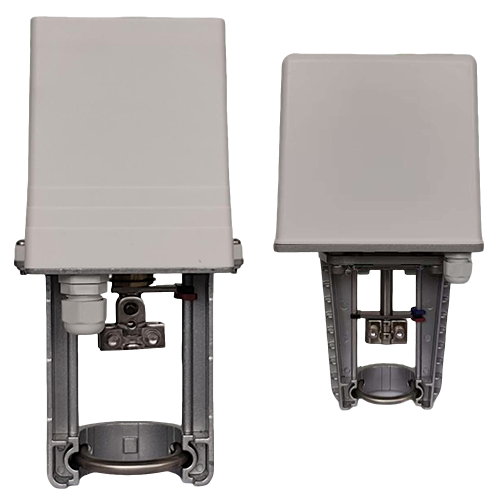

Actuator for flanged globe valve AVFFAVFF
The AVFF actuator series has been designed to control the flanged globe valves of the VFF series and is available in ON-OFF, floating, proportional and Modbus RS485 (RTU) control versions. The 1500 N actuator is equipped with a high-efficiency brushless DC motor, while the 3000 N actuator is equipped with a bidirectional synchronous motor. Fast and easy assembly. All AVFF actuators are fitted with a manual override for manual operation in the event of power failure.

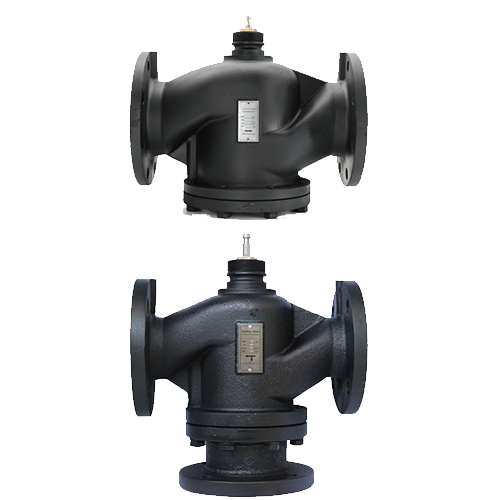

Flanged globe valveVFF 250-300
Cast iron valves, VFF 250–300 series, for hot or chilled water flow control in heating, air conditioning and refrigeration systems for civil and industrial applications. DN 250–300. Suitable for AVFF65 and AVFF100 actuators.

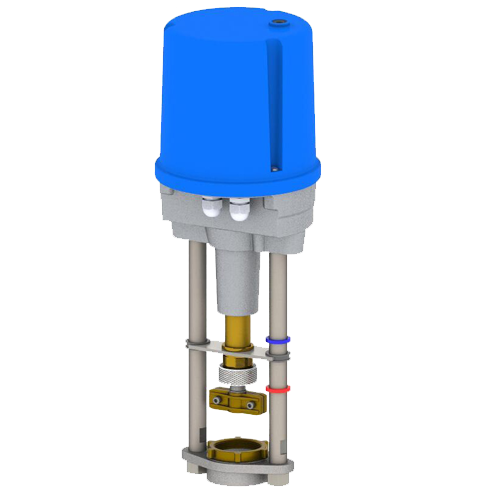

Actuator for flanged globe valve DN250, DN300AVFF65, AVFF100
Linear electric actuator AVFF65/100 series for HVAC applications, with integrated electronic positioner. Supports 0–10 V / 4–20 mA control signals, high accuracy (up to 0.4%), stroke up to 100 mm and thrust up to 10 kN. Compact and reliable, featuring auto-calibration, manual operation, and complete overload protection.

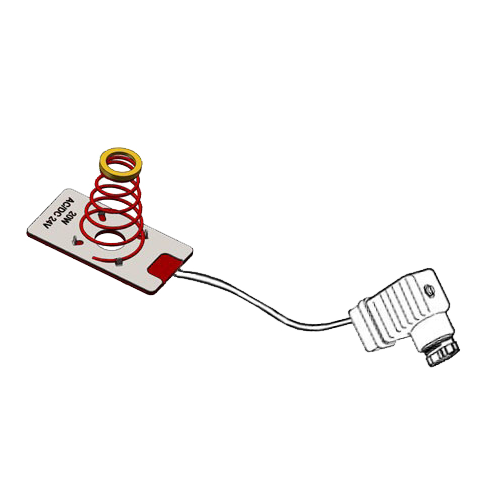

Stem heater for flanged globe valves VFFVH
The VH heater allows the valve to operate even in harsher environmental conditions, extending the temperature range below the nominal values specified in the catalog.
Butterfly valvesVM
The VM series of butterfly valves (Wafer) are used in heating, refrigeration and air-conditioning systems for the flow control of heated or chilled water for domestic and industrial applications.The valves can be coupled with our 24 or 230 Vac modulating or 2-3 points actuators with or without auxiliary switches.
